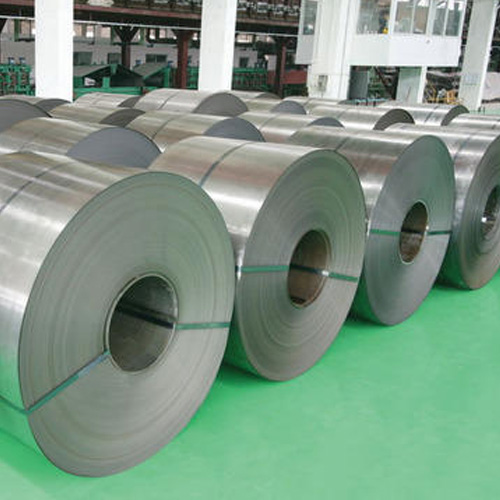

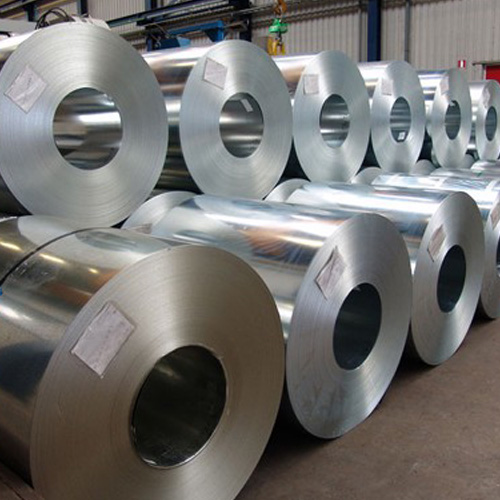

Galvanized Plain(GP) Coils
We are suppliers in a state-of-the-art 0.4 MTPA facility. we supplies high-quality colour coated sheets that add aesthetic beauty to the strength of steel. Pre-painted galvanised sheets (PPGI) have been extensively used across a wide range of prestigious projects across the world. Typical applications include construction, white goods and automotive industries.
- Width - 100 mm to 650 mm
- GSM Range - 120 to 300 GSM
- Thickness Range - 0.8 mm to 3.3 mm
- Raw Material - HR Coil from Tata Steel, JSW and SAIL Bokaro and Zinc from Hindustan Zinc Limited
- Building Material
- Washing Machine
- Air Conditioning
- Hair Dryer
- Car Parts
- Buses & Truck Parts
- Make Ornaments
- Making Doors
- Roofs
- ASTM A 653/A 653M – 18
- EN 10346 :2015 which supersedes EN 10327 : 2004
- EN 10346 :2015 which supersedes EN 10326 : 2004
- JIS G 3302 -2010
SPECIFICATIONS
| Description | Galvanizing | Cut to length | Slitting Line |
| Type | VERTICAL NOF CONTINUOUS GALVANIZING | ||
| Line Speed | 120 mpm | 100 mpm | 100 mpm |
| Thickness (MM) | 0.12 TO 3.80 MM | 0.12 TO 6.00 MM | 0.18 TO 3.80 MM |
| Width (MM) | 650 TO 1350 MM | 350 TO 2000 MM | 35 TO 1550 MM |
| Output Coil ID (MM) | 508mm / 610mm | – | 508mm / 610mm |
| Output Coil OD (MM) | 1850 mm MAX | – | 1850 mm MAX |
| Output Coil Weight (MT) | 15 MT MAX | – | 10 MT MAX |
| Zinc Coating (GSM) | 40 TO 360 (GSM) | 40 TO 360 (GSM) | 40 TO 360 (GSM) |
| Length (MM) | 500 TO 4000 mm max | ||
