Galvanized Iron(GI) Coils

  1. Home
  2. Products
  3. Galvanized Iron(GI) Coils

Galvanized steel are mainly applies in some professions, such as constructions. For the constructions, it mainly used as roofs of some industrial, residential constructions to preventing from corrosion. For the light industry, it used to produce outer cover of electrical appliances, chimney, kitchen utensil and corrosion-proved parts of automobiles. And it is also used as storage and transport in farming, animal husbandry, fishery area.

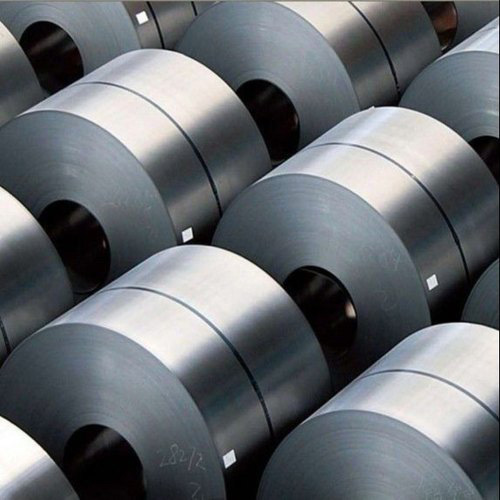

Galvanized-Iron-Coils

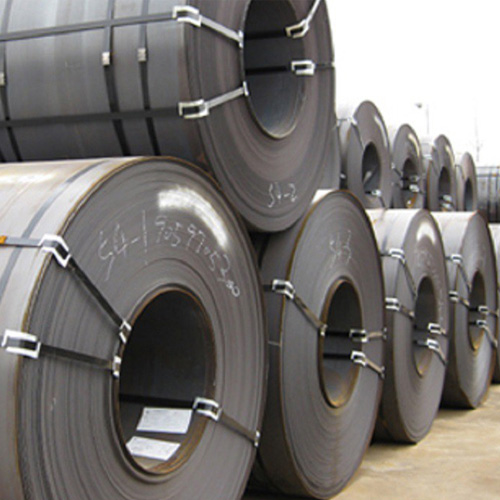

Galvanized-Iron-Coils

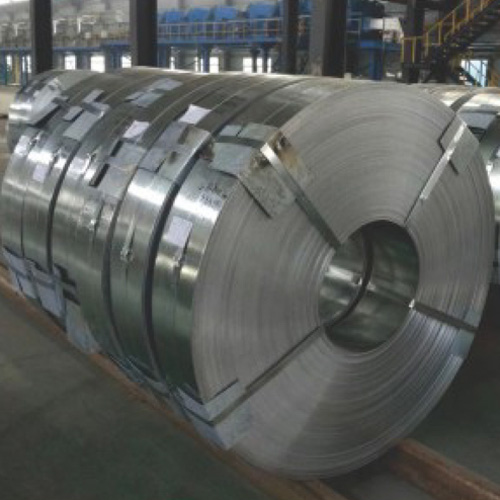

Galvanized-Iron-Coils
  • Thickness : 0.14-4.5mm
  • Width : 20-1500mm
  • Zinc coating : 50-275g/mm2
  • Tensile strength : 270-500n/mm2
  • building material
  • galvanized wire steel tape
  • Widely used for roofs
  • outer walls
  • ovens
  • explosive-proof steel
  • electrically controlled cabinets
  • ceiling channel
  • ASTM A 653/A 653M – 18
  • EN 10346 :2015 which supersedes EN 10327 : 2004
  • EN 10346 :2015 which supersedes EN 10326 : 2004
  • JIS G 3302 -2010

SPECIFICATIONS

Description Galvanizing Cut to length Slitting Line
Type VERTICAL NOF CONTINUOUS GALVANIZING
Line Speed 120 mpm 100 mpm 100 mpm
Thickness (MM) 0.12 TO 3.80 MM 0.12 TO 6.00 MM 0.18 TO 3.80 MM
Width (MM) 650 TO 1350 MM 350 TO 2000 MM 35 TO 1550 MM
Output Coil ID (MM) 508mm / 610mm – 508mm / 610mm
Output Coil OD (MM) 1850 mm MAX – 1850 mm MAX
Output Coil Weight (MT) 15 MT MAX – 10 MT MAX
Zinc Coating (GSM) 40 TO 360 (GSM) 40 TO 360 (GSM) 40 TO 360 (GSM)
Length (MM) 500 TO 4000 mm max
