Alloy Steel Plates

  1. Home
  2. Products
  3. Alloy Steel Plates

Alloy Steel Sheets Plates Coils, which is used by fabricators who serve the oil, gas and petrochemical industry. The prices that we offer Alloy Steel Plates is the least one can expect and the quality aspect of it is simply exquisite which speak volumes of the total dimensional accuracy of the product. Alloy Steel Coils is often used in Transformers, Heat Exchangers, Oil Refineries, Brine Heaters, Space Research, Steel industry, Engineering projects, General Piping Industry, etc. The offered Alloy Steel Slatting Coils are manufactured from the finest quality material & leading techniques in accordance with the set norms of industry.

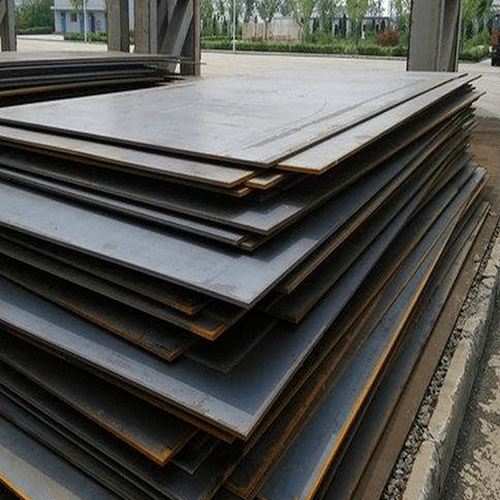

Alloy-Steel-Plates

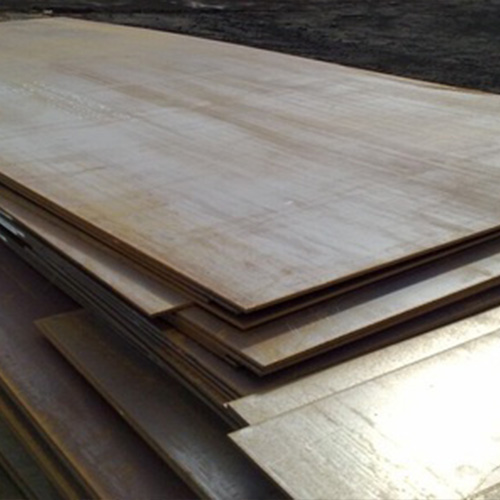

Alloy-Steel-Plates

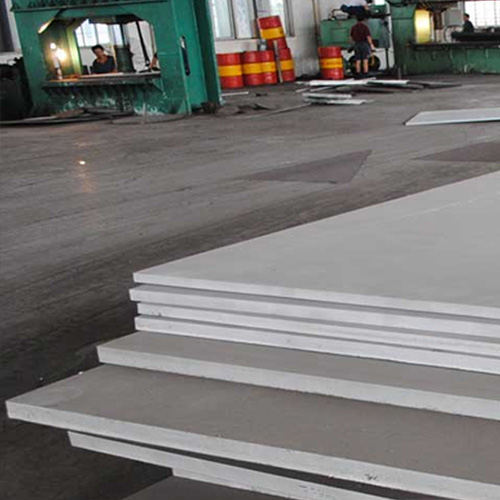

Alloy-Steel-Plates
  • Thickness - 0.12mm to 3.0mm
  • Technique - Hot Rolled
  • Length - 1000mm to 11000mm
  • Width - 8mm to 3000mm
  • Hydraulics
  • Railway
  • Construction
  • Agriculture
  • Bearings
  • Chemical
  • Medical
  • Defense
  • General engineering
  • Automotive
  • Windpower
  • ASTM - A 387 GR 11 CL 1 / CL 2 | ASTM - A 387 GR 22 CL 2 | ASTM - A 387 GR 12 CL 1 / CL 2

SPECIFICATIONS

Specifications Chemical Mechanical Mpa, min
C
Max		 Mn
Max		 Si
Max		 S
Max		 P
Max		 Cr
Max		 Mo
Max		 Ni
Max		 Cu
Max		 Tensile Yield % EL Bend
50 GL 200 GL
ASTM A 387
Gr 11 - CI 2 0.17 0.40/0.65 0.40/0.65 0.04 0.035 0.035 1.0/1.50 - - 515/690 3102 2 18 -
Gr 11 - CI 2 0.17 0.40/0.65 0.40/0.65 0.04 0.035 0.035 0.80/1.15 - - 450/585 275 22 19 -
Gr 11 - CI 2 0.15 0.30/0.60 0.30/0.60 0.035 0.035 0.035 4.0/6.0 - - 515/690 310 18 - -
Gr 11 - CI 2 0.15 0.30/0.60 0.30/0.60 0.035 0.035 0.035 2.0/2.5 - - 515/690 310 18 - -
