Chequered Steel Plates

  1. Home
  2. Products
  3. Chequered Steel Plates

Chequered sheet is a significant form of steel that is used as a raw material for various small to large scale industries. This form of plates is wear resistant and offers certified hardness. Chequered sheets cater to various wear resistant applications. At Manibhadra tubes & Metals, both hot dip Galvanized and self-colour black-condition-finish chequered sheets are available. We also offer diverse thickness and sizes as per the customer requirements. Usually, chequered plate flooring's suggested as road in industries to reduce the chances of skidding.

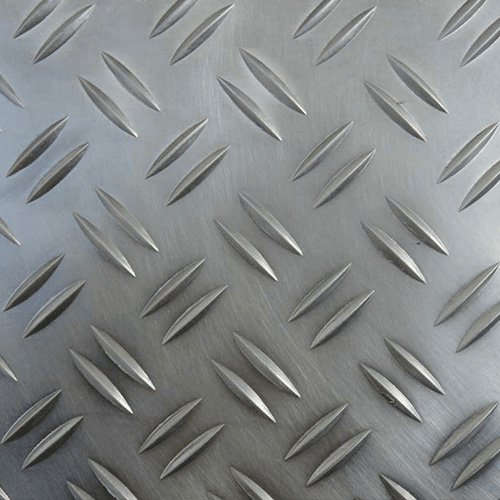

Chequered-Steel-Plates

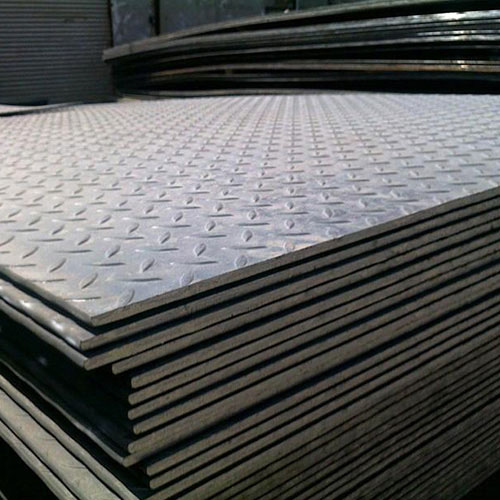

Chequered-Steel-Plates

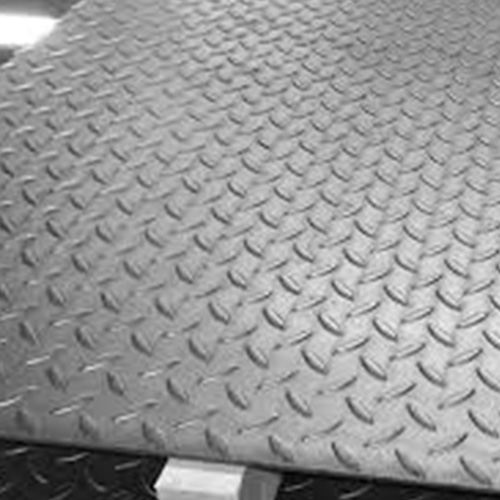

Chequered-Steel-Plates
  • Width - 1250mm to 1500mm
  • Length - Can be cut to sheets according to the requirement
  • Max. Weight - 25 MT per coil
  • Material - Mild Carbon Steel
  • Thickness - 2.8mm to 10mm
  • Automobile industry
  • Gratings over the closed gutter
  • Construction and cement firms
  • Structural applications
  • Industrial flooring
  • IS 3502

SPECIFICATIONS

Standard Specifications Chemical Composition (%)
Equivalent
Specifications		 Grade C
Max		 Mn
Max		 S
Max		 P
Max		 Si
Max		 Ai N
Max		 Micro Alloys
Max		 CE
Max
IS 3502 E250A 0.23 1.50 0.045 0.045 0.40   0.012 0.25 0.42
EN 10025 S25JR 0.21 1.50 0.035 0.035     0.012   0.40
ASTM A36 A36 0.25   0.050 0.040 0.40



Mechanical Properties ('t'=thickness in mm & 'GL'=Gauge Length)
Tensile
Test
Direction		 YS(Mpa)
Min

UTS(Mpa)

 %EL(min)
GL:5.65√A		 Bend
(180 Deg)

Temp C

 Si
Max
T 250 410 23 21
T 275 410-560 21   20 27
T 250 400-550
